YUSH CARTON MACHINE COMPANY
To supply customers, most suitable machine & best quality service, at most reasonable cost

|
| Place of Origin: | China |
| Brand Name: | YUSH |
| Certification: | CE |
| Model Number: | QZJ-F |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 50,000~60,000 per set |
| Packaging Details: | well packaged to loaded in container |
| Delivery Time: | 30~60 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 sets per month |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Function: | High-speed Reel Paper Sheeting Counting Stacking | Warranty: | One Year |
| Size: | Customized | Speed: | Customized |
| Color: | Customized | Voltage: | Made To Customer Request |
| High Light: | roll to sheet cutter,rotary paper sheeter,single roll paper sheeter stacker |
||

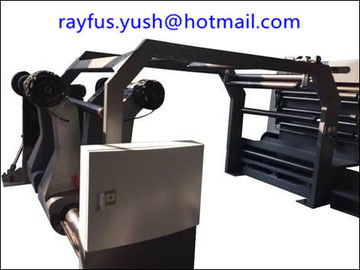

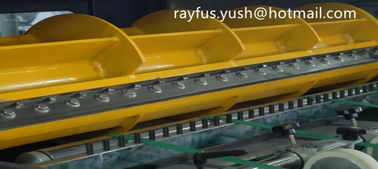

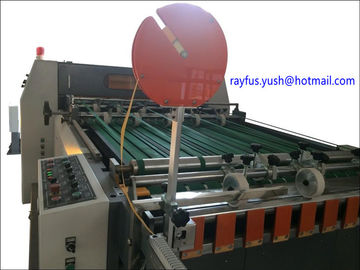

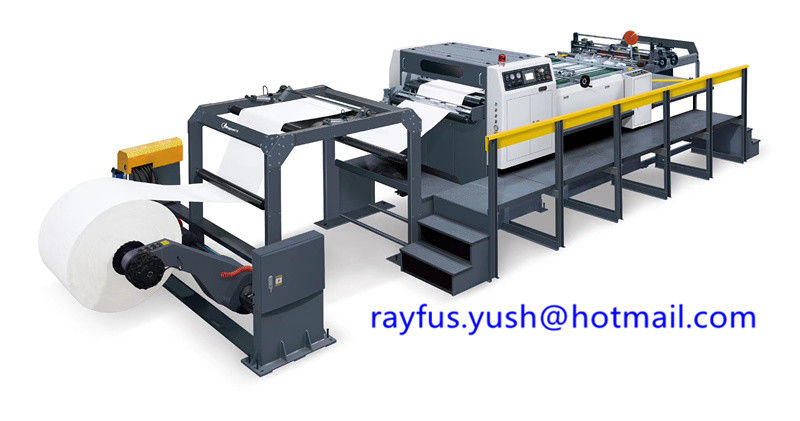

Automatic High-speed Rotary Paper Sheeter Stacker, single-roll, slitting cutting counting stacking
Automatic High-speed Rotary Paper Sheeter Stacker
(single-roll)
Functional Specifications:
Technical Parameters:
| Model | 1100 | 1400 | 1700 | 1900 |
| Max Paper Roll Width | 1100mm | 1400mm | 1700mm | 1900mm |
| Paper Thickness | 60~600gsm (customer cut 40~750gsm before) | |||
| Max Paper Roll Diameter | 1800mm (hydraulic shaftless Paper Roll Stand) | |||
| Cutting Length | 450~1450mm | 450*1650mm | ||
| Cutting Precision | ±0.3mm | |||
| Max Stacking Height | 1400mm | |||
| Design Speed | 300m/min (300cuts/min) | |||
| Weight | 10000kg | 12000kg | 14000kg | 16000kg |
| Dimension | 12000*4200*2500mm | 12000*4500*2500mm | 12000*4800*2500mm | 12000*5000*2500mm |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
