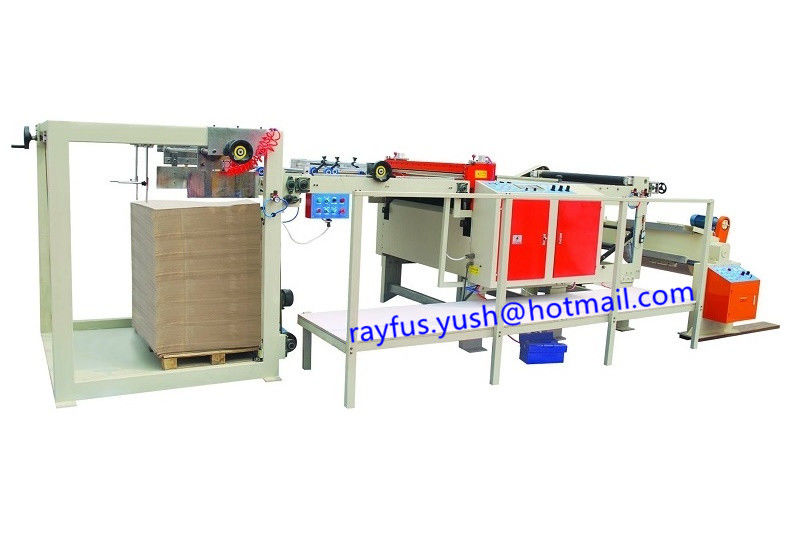

Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine

Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine

Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine
Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine
Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: QZJ-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000~30,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Reel Paper Cut To Sheet Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

rotary paper sheeter

,

heavy duty guillotine paper cutter

Automatic Paper Roll to Sheet Cutter, with Stacker, with printing-mark Sensor, servo control

Automatic Paper Roll to Sheet Cutter with Stacker



Functional Specifications:

  1. QZJ-B Automatic Paper Sheeter adopts servo-motor to control cutting length.
  2. It is equipped with photoelectric tracing correction system, could also do high-precision cross-cutting, automatically collect and stack the finished products.
  3. Transmission system adopts pneumatic system, hydraulic system, photoelectric sensor, etc. centralized control.
  4. The material feeding system adopts hydraulic lifting device. This machine integrates photo, electric, hydraulic, pneumatic, ect. together, easy to operate, high-precision cut, stable and low noise.
  5. Frequency adjust motor speed, auto counting, alarm stopping, tension with digital display.
  6. This machine is suitable for sheeting large reel materials, such as paper, paper plastic complex material, colorful printed complex material, etc.
  7. It is widely used for application in the industry of paper processing & printing package.

Technical Parameters:



Model 1100 1400 1600
Max Paper Roll Width  1100mm 1400mm 1600mm
Paper Thickness 80~400gsm (customer cut 50~550gsm before)
Max Paper Roll Diameter 1400mm (electrical shaftless Paper Roll Stand)
Cutting Length 200~1200mm (printing mark sensor as optional)
Cutting Precision ±0.3mm
Max Stacking Height 1200mm
Design Speed 100m/min (150cuts/min)
Weight 3500kg 4000kg 4500kg
Dimension 8000*3500*2000mm 8000*3800*2000mm 8000*4000*2000mm



Auto Paper Roll To Sheet Cutting Machine / Paper Roll To A4 Sheet Cutting Machine 0
