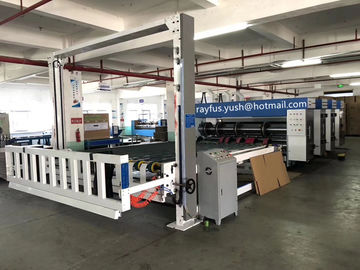

Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet

Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet

Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet
Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet
Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: DM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6,000~10,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 15~30 working days
Payment Terms: T/T
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Auto Stacker For Rotary Slotting Machine Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

partition assembly machine

,

partition slotter machine

Stacker Machine

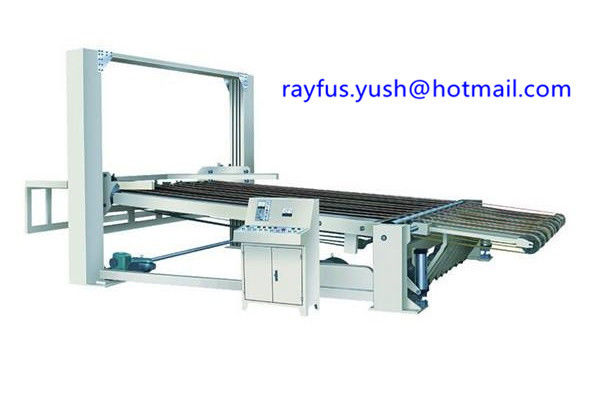

Functional Specifications:



1) Photo-electric control table lifting, adopt powerful chain equipped with balance safety device.

2) Adopt teeth-type powerful transmitting belts, for better friction and use life.

3) Equipped with auto holder, to lift while achieve stacking height, and open after pallet changed, no need to stop machine.

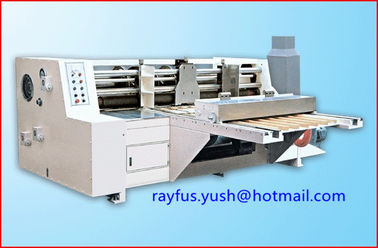

Automatic Lead-edge Roatry Slotter



Functional Specifications:

  1. Automatic Rotary Slotter is the one-off finished high efficiency equipment, which could do corrugated cardboard creasing, edge-cutting, corner-cutting, slotting, etc.
  2. Adopt vacuum assistant lead-edge feeding system, air volume adjustable, to ensure flexural cardboard automatically favorably feeding.
  3. Adopts hackle blades, 360 degree electrical positive and negative slightly adjust, blade axes treated by rigidity chroming electroplated, and nicety grinding, firmness durable.
  4. Gear adopt spraying style cycle lubricate, with lower noise and longer use life.
  5. Combined electrical adjustment for carton box length, width and height. (full-computer-adjustment as optional)

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*600mm 360*600mm 450*700mm 500*700mm
Min Slotting Distance 140*140*140*140mm 140*140*140*140mm 160*160*160*160mm 160*160*160*160mm
Max Slot Depth 230mm 300mm 360mm 400mm
Design Speed 120pcs/min 120pcs/min 120pcs/min 120pcs/min



Stacker Machine For Chain Type Auto Lifting Hold Sheets While Changing Pallet 0



YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines

Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
