Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing

Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing

Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing
Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing
Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: SZJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 6,000~10,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Auto Feeder For Chain Type Machine Of Carton Box Making Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

auto feeder machine

,

partition assembly machine

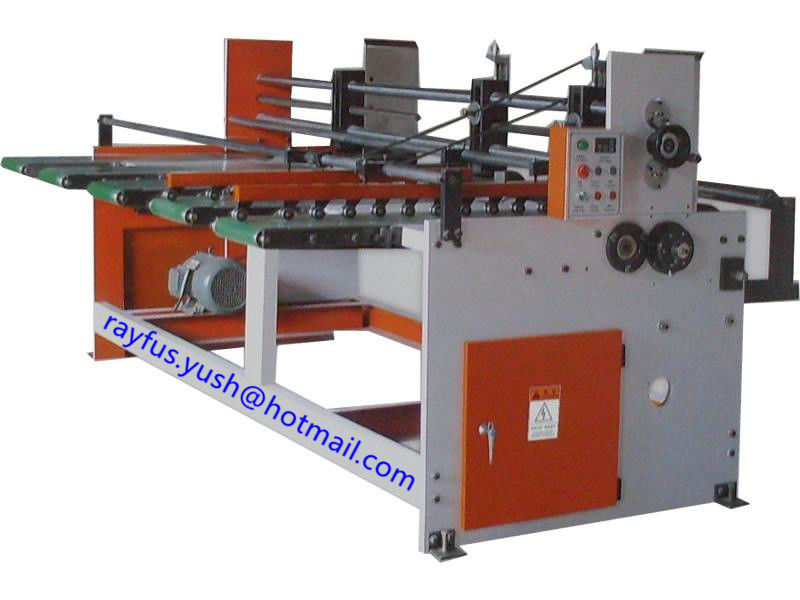

Auto Feeder for Chain type Machine

Functional Specifications:

1) Auto feeding machine is continuous board carrying equipment.

2) It replaces the original single carrying form with the continuous form.

3) It guarantees the board going straightly, it not only improves the working efficiency, but reduces the workers' labor degree greatly, and it also reduces the quantity of staff.

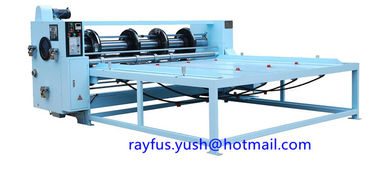

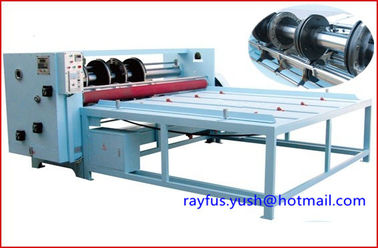

Chain type Roatry Slotter



Functional Specifications:

  1. This machine is a whole one for separating the cardboard, rolling the line, cutting the corner and opening the slot at one process.
  2. Transmit gear adopt no clearance cooperation, debase gear adjust error.
  3. Gears adopt concentrate feeding oil lubricate, low noise, long use-life.
  4. 360-degree electric planet gear adjustment phase, speedy and nicety.
  5. Slotting knife and corner-cutting knife combined adjust of carton box height.
  6. Slotting knife and creasing wheel combined adjust for carton box length and width. (optional)

Technical Parameters:



Model 920 1224 1428 1632
Max Sheet Size 920*2000mm 1200*2400mm 1450*2800mm 1600*3200mm
Min Sheet size 300*500mm 360*500mm 450*600mm 500*600mm
Min Slotting Distance 120*120*120*120mm 120*120*120*120mm 140*140*140*140mm 140*140*140*140mm
Max Slot Depth 230mm 300mm 360mm 400mm
Design Speed 60pcs/min 60pcs/min 60pcs/min 60pcs/min



Automatic Feeding Machine For Chain Type Edge Corner Cutting Slotting Creasing 0
