Place of Origin: | China |
Brand Name: | YUSH |
Certification: | CE |
Model Number: | DMC-D |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 60,000~200,000 per set |
Packaging Details: | well packaged to loaded in container |
Delivery Time: | 30~60 working days |
Payment Terms: | T/T |
Supply Ability: | 15 sets per month |
Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Function: | Auto Collecting, Counting, Stacking And Output Corrugated Cardboard Sheets | Warranty: | One Year |
Size: | Customized | Speed: | Customized |
Color: | Customized | Voltage: | Made To Customer Request |
Type: | Double-layer Stacker To Fit Duplex Cut-off Machine | ||
High Light: | double facer corrugated machine,carton manufacturing machine,double layer basket down stacker |
Technical Parameters:

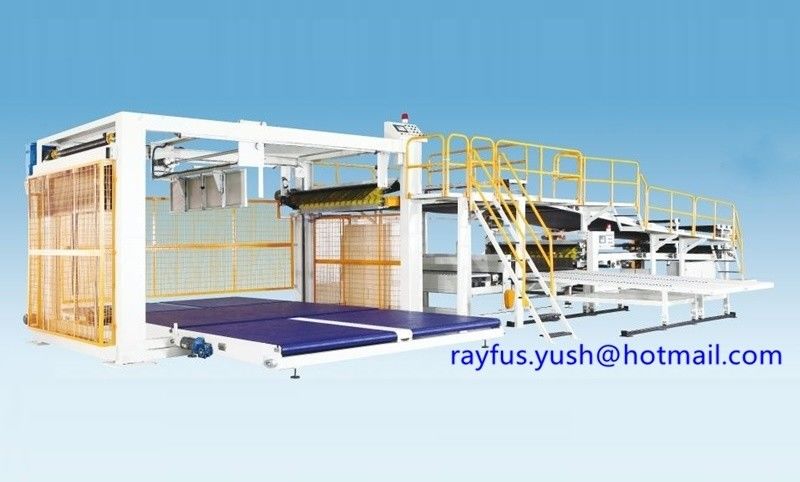

1) Basket Down Conveyor Stacker automatic collecting cardboard, basket down stacking and side output.
2) Servo control basket lift and down, to ensure stable quick stacking, safe and reliable.
3) Wide conveyor best delivery, keeping synchronours speed with corrugation line, to ensure stable stacking.
4) PLC control to follow the speed of corrugation line, delivery cardboard sheet, control basket up and down, control baffle position to achieve instalment stacking automatically.
5) Adopt fiberglass brush pressing cardboard, could adjust pressure according to sheet length, Exit of cardboard sheet with press brush, to avoid cardboard excursion and guide cardboard sheet correct delivery.
6) AC frequency motor drive sheet delivery part independently, automatic follow productcion line speed, to ensure cardboard stacking quick and stable.
7) Stacking adopt man-machine conversation and toucvh screen display, easy and simple orperation.
8) Baffle position automatically set, automatically side output.
9) Special for High-speed Corrugated Cardboard production line, double layer model to match Dupelx Cut-off machine.
10) Double-layer Stacker to work with NC Duplex Cut-off Machine.
Technical Parameters:
Max Effective Width | 1100~2500mm |
Max Stacking Length | 3000mm |
Max Stacking Height | 1500mm |
Design Speed | 150~250m/min |
Working Speed | 120~220m/min |
Remarks | Double-layer Stacker to fit NC Duplex cut-off machine |

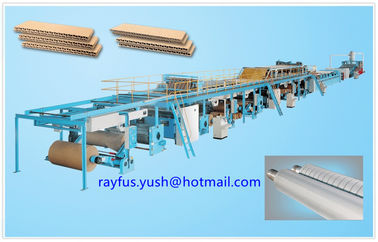

3/5/7-layer Corrugated Cardboard Production Line
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
Contact Person: admin
Tel: +8615690196799

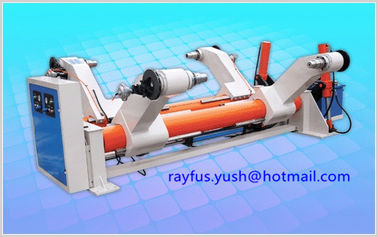

Custom Corrugated Cardboard Production Line / Shaftless Hydraulic Mill Roll Stand
