3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet

3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet

3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet
3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet
3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet
Product Details:
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: FZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10,000~20,000 per set
Packaging Details: well packaged to loaded in container
Delivery Time: 30~60 working days
Payment Terms: T/T
Supply Ability: 15 sets per month
Contact Now
Detailed Product Description
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Function: Cutting Paperboard To Length Warranty: One Year
Size: Customized Speed: Customized
Color: Customized Voltage: Made To Customer Request
High Light:

paper slitting machine

,

carton folding and gluing machine

,

paperboard production rotary cut off machine

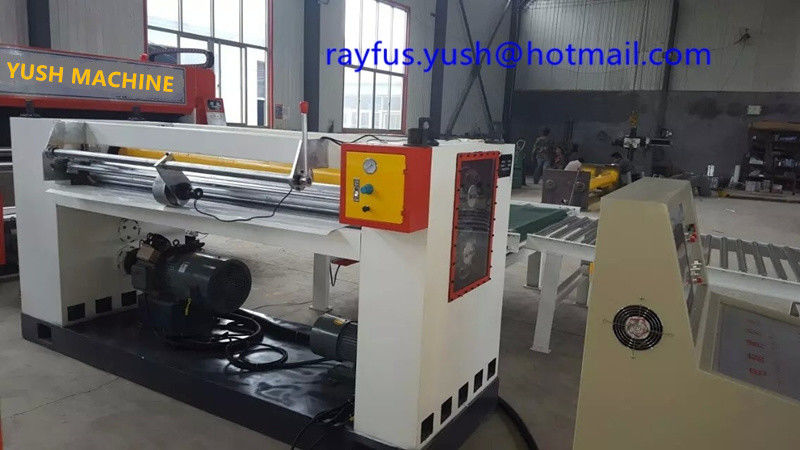

NC Rotary Cut-off Machine, helical-knife cut to sheet for 3/4/5-ply Hard Paperboard Production Line

NC Rotary Cut-off Machine (Helical-knife)

Function Description:

1) Special structural design, mechanical wall panels and bases with excellent strength, with perspective windows on both sides of the wall panels for easy observation and maintenance.

2) The transmission system adopts oil pump automatic circulation lubrication, to ensure transmission accuracy.

3) Using high-precision, high-hardness grinding gears, high-speed resistance, long life, ensure accurate knife edge engagement, and flat cardboard without burrs.

4) High-precision knife shaft and knife holder design, high-speed cutting is very stable.

5) Special design of the knife exchange structure is very fast and convenient.

6) The entire system is designed and manufactured under C.E standards, and has undergone strict industrial-grade computer testing to ensure quality, life and stability.

7) The driving part adopts AC servo drive. The driver is made in Germany and the motor is Shanghai Realland. It has high quality, fast response and precise action.

8) Using a special power regeneration storage design, the power saving effect is particularly good, and it has the ability to overcome the unstable power plant environment.

9) The system has an automatic detection function, to prevent equipment loss caused by abnormal use and negligent operation.

10) The computer can automatically adjust the paper cutting acceleration according to the cardboard specifications and production speed; it automatically tracks the cardboard running speed and maintains synchronization.

11) The computer can store 999 orders and complete them automatically in order or according to priority conditions.

12) The screen displays various production information.

Technical Parameters:

Max Effective Width 1000~2200mm
Cutting Length 500~9999mm
Cutting Precision ± 1mm
Design Speed 100m/min

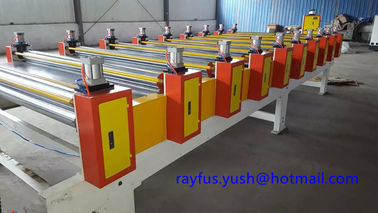

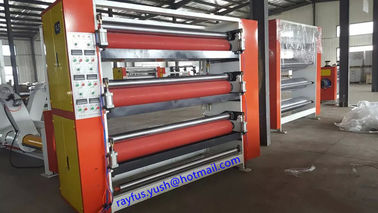

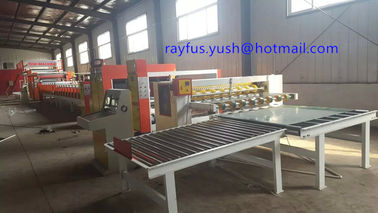

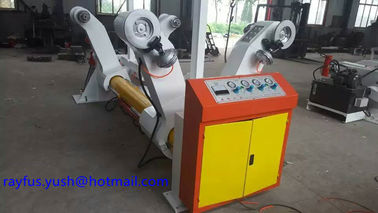

3/4/5-ply Hard Paperboard Production Line

3 4 5 Ply Hard Cardboard Production Line Rotary Cut Off Helical Knife Cut To Sheet 0
